Expand Your Sewing, Quilting And Embroidery To New Horizons

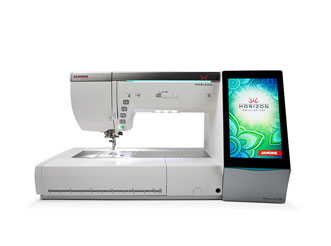

Experience the HORIZON Memory Craft 12000

With a massive 440mm ( 17.3" ) arm and 280mm ( 11" ) to the right of the needle this incredible new model has the most workspace of any Janome machine.

It has a 380" ( 15" ) stainless steel plate in the bed embossed with useful measurements and the largest and most stable embroidery system we've ever developed. It will change the way you create !



Real-Time PC Connection With Horizon Link™

It’s easy to create and edit designs on the

touchscreen. But it’s even easier when you can

do the same thing in real time on your computer. Use

your mouse to drag, drop and edit. This means your

editing screen can be as large as your computer

monitor. Or take your laptop with you to edit on the go.



Stitch Up To 9mm Wide

The extra width makes all your decorative stitches bolder and more

distinct. Most of the 425 built-in stitches take full advantage of the 9mm

width. You get twenty feet, newly designed for a  9mm stitch width,

included with your machine.



Create Your Own Stitches

Don’t just modify existing stitches. Design your own original decorative

stitches from scratch. Using the Stitch Composer,™ it’s easy. And your

Memory Craft 12000 can use your new creation just like one of its own

built-in stitches, altering length and width and adding it to combinations.



Introducing The Linear Motion Embroidery System™

It slips neatly onto the back of your machine to give you a bigger

embroidery area than ever before, with even greater accuracy. So

discreet and sleek, you can leave it attached for regular sewing.

Cleverly engineered, it’s the only home-use sewing machine to allow

Free Arm embroidery: a Janome exclusive.



AcuFeed Flex™ Layered Fabric Feeding System

Our AcuFeed™ system has been a favourite among quilters for its

amazing precision and power. Now it’s even better. AcuFeed Flex™ is

easy to remove and comes in two widths with multiple feet to

address different tasks.



Easy Pivoting With The Auto Presser Foot Lift

The Auto Presser Foot Lift automatically lifts the presser foot after a thread cut when you’ve pressed

the thread snip button, or after a programmed thread cut at the end of a row of decorative stitches.

You keep your hands on your project for optimum control.



One-Step Needle Plate Conversion

For piecing quilts, sewing light fabric or doing embroidery, a straight stitch needle plate makes all the

difference. Now you can switch your needle plate in just seconds. Instead of undoing screws, simply

push one lever to release the plate, then snap the new plate in place.



Change The Width Of Your Zigzag While Sewing

Start your Free Motion Quilting or Surface Designing with a straight

stitch. Then widen to a 9mm zigzag without stopping or ever taking your

hands off your fabric. With Variable Zigzag, you use the knee lifter to

broaden and taper stitches while sewing.



Free Motion Quilting Is Freer Than Ever

Precision stitching, more decorative choices, and automatic features

make expressing yourself through FMQ easier than ever. And now, you

can also customise the foot height for your project and preference, then

save the settings to memory. Or let Auto Pressure and Auto Height

adjust for you.



91 Needle Positions

You don’t have to settle for “close enough.” Thanks to a 9mm stitch width, the Memory Craft 12000 is

capable of more precise detail than ever on every decorative stitch. Position the needle with

unprecedented accuracy for smoother transitions and perfect curves.



Embroider At Higher Speeds With Better Precision

Janome engineering allows the Memory Craft 12000 to embroider at up

to 1,000 stitches per minute. And because the compact embroidery unit

is so stable, you can stitch at this speed with hoops up to 300 x 230mm

(11.8" x 9.1") without losing any Janome stitch quality.





A Sewing Bed With 380mm (15”) Of Embossed Stainless Steel

Not only does the Memory Craft 12000 have more work space than any other Janome,

the 440mm ( 17.3" ) sewing bed features a 380mm (15”) stainless steel plate embossed with useful

measurements. 280mm (11”) to the right of the needle gives you plenty of room for your biggest

projects.



See It All More Clearly

In addition to lighting your work area with 10 built-in LEDs in five

locations, you can also extend the retractable High Light™ for greater

illumination in the area you need most: directly under the needle.

And for an even closer view you can also attach the new AcuView

Magnifier.™





Built-in Embroidery Is Better Than Ever

Your machine comes with more than 300 built-in embroidery designs, all

specially optimised for the four new hoops. You’ll find everything from

florals to kitchen motifs to fancy alphabets. And there’s a whole new set

of Border Designs to go around the edges of your project. To help you

get perfect placement, some of these automatically create small basting

stitches called Template Alignment Guides.



Enhanced Embroidery Settings

Set your embroidery speed up to 1,000 stitches per minute. Set the

height of the embroidery foot above your fabric. The improved Bobbin

Sensor system protects you from running out in the middle of a design.

And you have flexible options for thread selection. Another feature

you’re going to love is the improved Colour Sort function,which allows

you to group design elements of the same colour for fewer thread

changes during stitch out.



Enjoy Buttonholes With More Options

The Memory Craft 12000 uses a new Buttonhole Foot that gives you

more options in Buttonhole Settings. The automatic foot comes with a

stabiliser and features a screw adjustment for fine-tuning the buttonhole

size. You can now specify the width of your buttonhole opening. It all

adds up to the easiest, most precise buttonholes you’ve ever made.



Jump Thread Trimming Options

Embroidery thread cutting is more automatic than ever. In addition to setting your machine to cut the

thread when a colour change is complete, you can also choose the cut length and opt for the Cutting

Command. After trimming the thread, the machine pulls the tail to the back of the embroidery for a

professional look.



Whether you quilt, embroider, sew home furnishings, create garments or do a

combination of everything, this machine makes it all more enjoyable. You’ll be able to

complete projects more quickly when you’re on a deadline. It’s so effortless to use

and gives you such powerful tools, you can spend whole days happily stitching,

loving what you create. It truly expands your horizons.



Features List

• Size with embroidery unit:

   W 575 x H 316 x D 346 mm

   (W 22.6” x H 12.4” x D 13.6” )

• Size w/out embroidery unit:

   (W 575 x H 316 x D 230 mm)

   (W 22.6” x H 12.4” x D 9”

• Maximum working area 440mm (17.3”)

• Arm Space: L 280 x H 120 mm (L 11” x H 4.7”)

• Free Arm/Flat Bed Convertible

• Free Arm Length: 150 mm (5.9” )

• Weight w/ embroidery unit: 17.2 kg (37.9 lbs)

• Weight w/out embroidery unit: 13.7 kg (30.2 lbs)

• Sewing Speed: 60 - 1,000 spm

• Full Colour LCD Backlit Touchscreen:

   W 86.4 x H 115.2 mm (W 2.7” x H 4.5” )

• Lighting System: 10 white LED lamps in 5 locations

• Retractable High Light™

• Convenient optic magnifier (1.5 magnification)

• PC Connection: Horizon Link™

• AcuGuide™ Cloth Guide

• Maximum Embroidery Size:

   300 x 230 mm (11.8” x 9.1”)

• Standard Hoop Sizes:

   GR: 300 x 230 mm (11.8” x 9.1”),

   SQ23: 230 x 230 mm (9.1” x 9.1”),

   SQ14: 140 x 140 mm (5.5” x 5.5” ),

   Free Arm FA10: 100 x 40 mm (3.9” x 1.6”)

• 338 Built-in Embroidery Designs

• 10 Embroidery Fonts

• Jump Thread Trimming

• Auto Return After Thread Break

• Embroidery Editing: Resize Combine, Duplicate, Flip, Arc, Group, Drag & Drop,

   Zoom, Trace, User Colour Choice

• Stitch Composer™

• 425 Built-In Stitches, including 13 One-Step Buttonholes

• 3 Monogram fonts, with European letters, plus border

• Maximum Zigzag Width: 9mm

• Maximum Stitch Length: 5mm (forward and reverse)

• Built-in Memory Banks: up to 4MB

• 11 On-Screen Languages

• Knee Lifter: Electronic + Variable Zigzag

• Built-In Needle Threader

• Automatic Thread Cutter

• Auto Declutch Type Bobbin Winding

• Horizontal Full Rotary Hook

• 7-Piece Feed Dog With Auto Drop

• Speed Control Slider

• Needle Up/Down

• Extra-High Presser Foot Lift

• One-stop plate converter

• Snap-On Feet

• Electronic Foot Controller

• Semi-Hard Cover

The "9700" is a combined embroidery and sewing machine offering everything you need in one powerful unit, Many of its features can be found on our top-of-the-line Memory Craft 10001. And for additional creativity our optional Customizer 10000 Plus software program allows you to create your own designs and download images from the internet. Featuring a large, display screen with simple icons it is so easy to use.

It also features Janome's unique built in embroidery system which means there is no bulky embroidery attachment to worry about .. in fact changing from sewing to embroidery and back again is one simple touch of a button.

* Built in embroidery system - one step switchover.
* Large display screen
* Large embroidery area - 200mm x 140mm
* Off line PC link
* Uses compact flash cards - speed & high storage
* Adjustable embroidery speed
* 3 embroidery fonts built in
* 95 designs built in
* Upgradeable
* Design editing - rotation, flip, zoom, drag & drop.
* Time indicator and stitch counter
* 4 popular thread options
* Design Tracing
* 105 stitches including 7 buttonhole styles.

And it has 11 languages built in !!

Standard Accessories

• Zipper Foot
• Satin Stitch Foot
• Embroidery Foot
• Zig Zag Foot
• Blind Hem Foot
• Overedge Foot
• Auto Buttonhole Foot
• Button Sewing Foot
• Basting/Darning Foot
• Quilting Bar
• Bobbins
• Lint Brush
• Seam Ripper
• Additional spool pin
• Spool Pin Felt
• Spool stand
• Spool holder ( Large )
• Spool Holder ( Small )
• Scissors
• Screwdrivers ( 2 )
• Set of needles
• Standard Hoop A
• Large Hoop B
• Template Sheets
• Hard Cover

 Download PDF Brochure

These professional-style embroidery machines come standard with many features found on our top-of-the-line Memory Craft 11000. And for limitless embroidery possibilities our optional Customizer 11000 software program allows you to create your own designs and download images from the internet. The Display Screen tells you everything you need to know, so you can spend your time sewing instead of searching through an instruction book. They make embroidery so much easier with simple on-sceen icons to follow and all these great features -

• Built in embroidery system
• Large display screen
• Large embroidery area - 200mm x 140mm
• USB port ( 350E ) or Off line PC link (300E )
• Automatic Thread Cutter ( 350E )
• Bobbin Thread Sensor ( 350E )
• Uses compact flash card - speed & high storage
• Adjustable embroidery speed
• 3 embroidery fonts built in
• 100 designs built in ( 300E - 91 designs )
• Design editing - rotation, flip, zoom, drag & drop.
• Time indicator and stitch counter
• 4 popular thread options on screen
• Design Tracing

Standard Accessories

• Bobbins
• Lint Brush
• Additional spool pin
• Spool Pin Felt
• Spool stand
• Spool holder ( Large )
• Spool Holder ( Small )
• Scissors
• Screwdrivers ( 2 )
• Set of needles
• Standard Hoop A
• Large Hoop B
• Template Sheets

 Download PDF Brochure

A new generation of long arm models starts with the stunning HORIZON ( Memory Craft 7700QCP ). We've taken all the best and easiest to use features from all our other models and packed them into one unbelievable sewing machine.
The sheer length of the arm space is impressive at 11" ( 280mm ) .. ideal for large quilts, bridal dresses and those bigger home furnishing projects. And it's powerful ... reaching speeds of up to 1,000 stitches per minute. Nevertheless even at those speeds stitch quality is a priority. With a built-in AcuFeed system for precise fabric handling and an automatic needle plate converter to enhance straight stitch performance .. rest assured this machine offers spectacular stitch quality.



 Shadow free lighting is provided by 5 bright white lights whilst quick and easy stitch selection can be made on the large touch screen or with the jog dial. Choose from over 600 stitches including alphabets and numbers, including some great fun play stitches. Memorise a combination of these ... the HORIZON will calculate the length of the combined patterns just to make sure they fit into the available space on your fabric.



Other special features include an automatic needle threader, a speed controller to set your maximum sewing speed and a stop / start button if you choose not to use the foot control. It also has a needle up / down button which programmes the needle to either finish in the up position or in the fabric ... great for pivoting on corners ! It has a lock stitch button to ensure every stitch pattern is locked off at the end and even an automatic thread cutter to trim your threads.



It doesn't matter whether you are dressmaking, quilting or making home furnishings, with creativity this easy you'll just want to get started.



We'll be offering you a chance to test drive the HORIZON at our Project Day on 5th October 2010 .. it will be  lots of fun & creativity and you get to make a lovely gift to take home !

Spaces Strictly limited  - book early to avoid disappointment

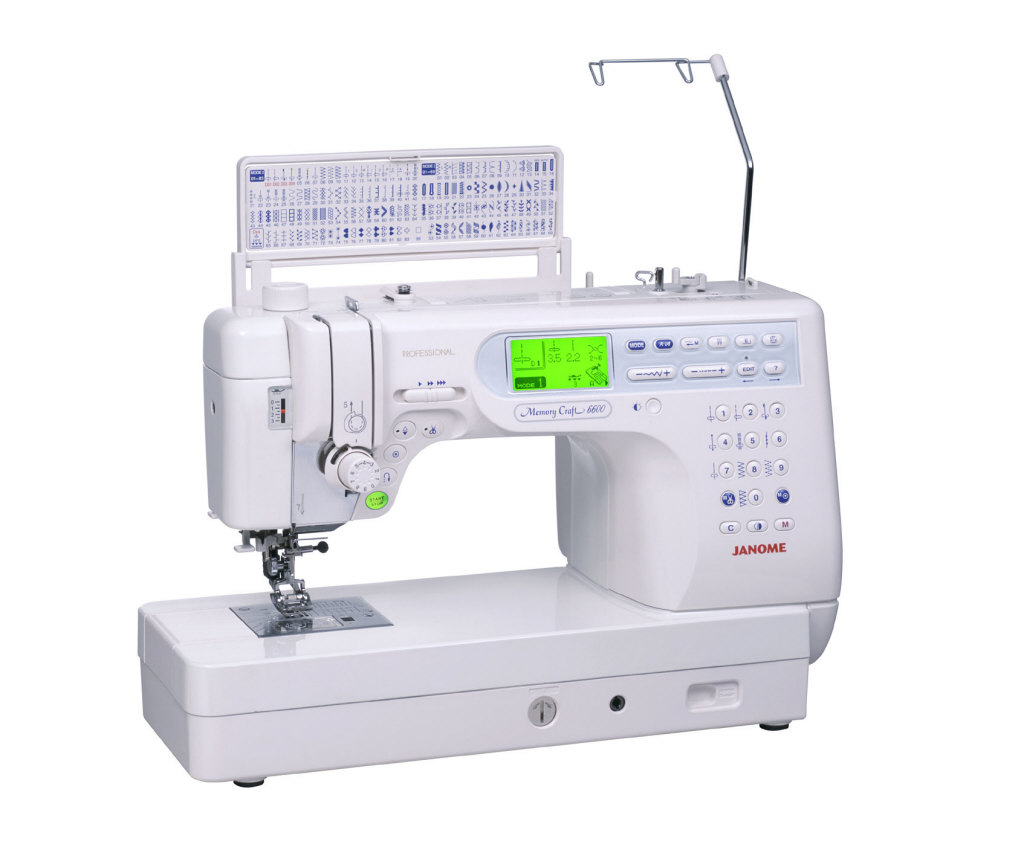

The Memory Craft 6600P is the successor to the immensely popular MC6500P which has been hailed as the perfect machine machine for big projects. The 6600P is has all the features of the 6500P .... an aluminium body with a longer arm that provides 50% more working space than other machines.... a high powered motor which can sew up to 1000 stitches per minute - 25% faster than most machines   and it is a flatbed machine, styled for those bigger projects such as home furnishing, bridal wear and quilting. Industrial quality tension control, variable foot pressure, a built in needle threader, a knee lifter, unique automatic thread cutter and a large extension table, complete the exterior features of this machine. Inside it is a computerised dream machine with lots of stitches for specialist sewing techniques plus 7 styles of one step buttonholes. A memory facility and up to five times satin stitch elongation add even more options to your sewing. There's even a speed control and a built in information system which is relayed through the iconographic screen. But now the 6600P offers even more !!!! ..Acufeed , a built in dual feed system .. a stop/start button..a seven piece feed dog .. a dual lighting system .. more stitches ( now over 400 ) .. more memory banks ..and lots lots more !!
This is the ultimate machine for the really serious sewing enthusiast.

Standard Accessories

• Zipper Foot
• Satin Stitch Foot
• Rolled Hem Foot
• Zig Zag Foot
• Blind Hem Foot
• Overedge Foot
• Auto Buttonhole Foot
• Cording Foot
• Overcasting Foot
• Basting / Darning Foot
• Quilting Bar
• Even Feed Foot + Quilting Bar
• ¼" Seam Foot
• Open Toe Satin Stitch Foot
• Cloth Guide
• Knee Lifter
• Bobbins
• Lint Brush
• Seam Ripper
• Spool holder ( Large )
• Spool Holder ( Small )
• Screwdrivers ( 2 )
• Set of needles
• Soft Cover

 Download PDF Brochure

The Memory Craft 4900QC (Quilter's Companion) is a machine made especially for quilting. It has an extra large, backlit LCD display with easy-to-follow icons.

Previous Setting Recall, allows the MC4900QC to remember the last stitch that was sewn--even after the machine has been turned off.

The full rotary, horizontal, magnetic hook system provides whisper-quiet operation. And, automatic thread tension assures legendary Janome stitch quality.

Weight 11kg

Main Features Total of 534 stitches Mode button allows quick access to chosen range of stitches alphabets and numbers Full-featured editing of stitches - width and length Elongation of selected stitches up to 5 times their original length Three memory banks, storing up to 50 stitches in each Drop feed facility, Large LCD screen Speed Control Lever Stop/start button Twin lamps for greater illumination of sewing area Knee lifter Seven piece feed dog Six Automatic / Sensor Buttonholes 10 Accessory Feet 2 Accessory Storage Areas Pressure Adjustment Dial Display instruction can be viewed in 10 different languages Twin Needle Indicator Needle Threader Auto-Lock Button Electronic Foot Control Hard Carrying Case

Feet and Attachments 1/4" Seam Foot O Walking Foot + Quilter Guide Zig-zag Foot A Automatic Buttonhole Foot R Zipper Foot E Satin Stitch Foot F Blind Hem Foot G Cording Foot H Overcast Foot M Overedge Foot C Darning Foot P2 Hemmer Foot D Additional Spool Pin Spool Pin Felt Quilting Bar Seam Ripper Lint Brush Bobbins Screwdriver Small and Large Spool Holder Set of Needles

The DC4100 gives you computerised Janome sewing with 100 pre-programmed stitches, including 5 different fully automatic buttonholes. In addition there is a built in alphabet and memory function for lettering and stitch combinations. You can even elongate patterns by up to 5 times without losing stitch density.

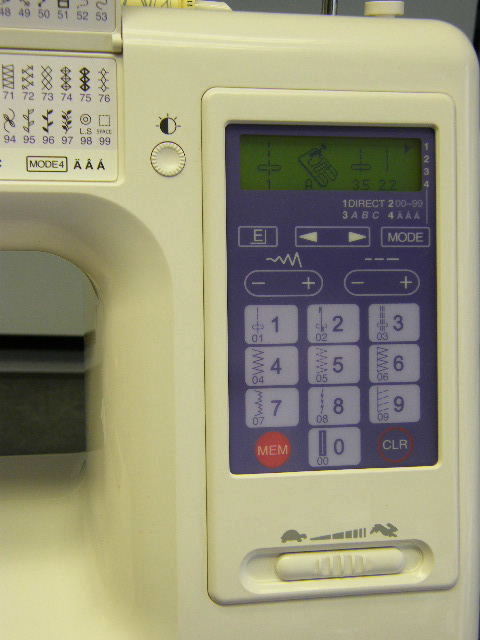

The LCD display makes it easy to see which stitch you've chosen

as well as the width and length, which are fully adjustable.

A jam-proof, magnetic, top-loading, full rotary hook system eliminates the need for a removable bobbin case. The hook cover plate opens at the touch of a button, and the extra needle penetration power of the DC4100 lets you sew across fabric of any thickness. The extension table also detaches for free-arm sewing.

This machine also feature a seven piece feed dog, a drop feed facility, automatic needle threader and comes complete with a hard cover. Weight - 10kg.

The Mystyle 22 is a lightweight machine with a top loading jam proof bobbin system and convertible free arm for circular sewing.

The machine features 22 stitches and has a fully automatic one step buttonhole. It combines simplicity with elegance and is packed full of practical features.

The built-in information window tells you the most suitable foot, stitch length and width to use for the pattern you have chosen and the machine has a drop feed facility. It is supplied with a hard cover.

Weight - 10kg.

Standard Accessories

• Zig Zag Foot A
• Straight Stitch Foot H
• Transparent Buttonhole Foot B
• Automatic Buttonhole Foot R
• Zipper Foot E
• Satin Stitch Foot F
• Blind Hem Stitch Foot G
• Overedge Foot C
• Quilter Arm
• Additional Spool Pin
• Spool Holders (L,S)
• Seam Ripper
• Bobbins (4)
• Screwdriver
• Lint Brush
• Set of Needles

Newly styled for 2005 ..a lightweight machine with a top loading, jam proof bobbin system and convertible free arm for circular sewing.

The machine features 24 stitches plus a fully automatic one step buttonhole and a built in needle threader. It offers both stitch width and length adjustment and a drop feed facility for freehand embroidery and darning  The 525S also has an auto-declutch bobbin winder and is supplied with a hard cover.

Weight - 8kg.

Standard Accessories

• Zig Zag Foot
• Zipper Foot
• Sliding Buttonhole Foot
• Blind Hem Stitch Foot
• BH Foot
• Overcasting Foot
• Quilting Guide
• Set of Needles
• Screwdriver
• Lint Brush
• Bobbins (4)
• Seam Ripper
• Spool Holders (L,S)
• Spare Spool Pin
